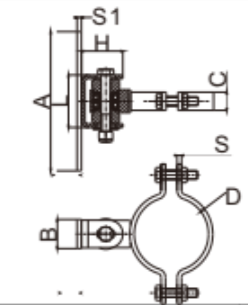

Product No | Description | A(in) | B(in) | S1(in) | H(in) | L(in) | D(in) | C(in) | S(in) | WT(lb) | Surface Finish |
L120A | 7-3/32" | 1-37/64"
| 15/64" | 2-61/64"
| 2-1/4" | 4-1/64" | 63/64"
| 15/64"
| 4.31 | Yellow Zinc Black powder coated | |
L120B | 7-3/32" | 1-37/64" | 15/64" | 2-61/64" | 2-1/4" | 6-39/64" | 1-37/64"
| 25/64"
| 8.79 | Yellow Zinc | |
L120C | 7-3/32" | 1-37/64" | 15/64" | 2-61/64" | 2-1/4" | 8-57/64"
| 1-37/64" | 25/64"
| 9.989 | Yellow Zinc |
| Surface Finish | White Zinc or Yellow Zinc or Black Powder Coated |
| Pipe Dia | 4" or 6-1/2" or 8-7/8" |
