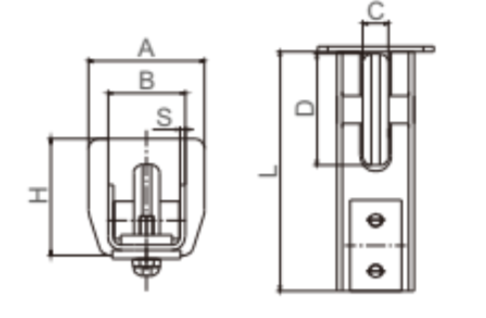

Product SKU | Description | D(in) | Cin) | B(in) | A*H(in) | L(in) | S | WT(lb) | Surface Finish |

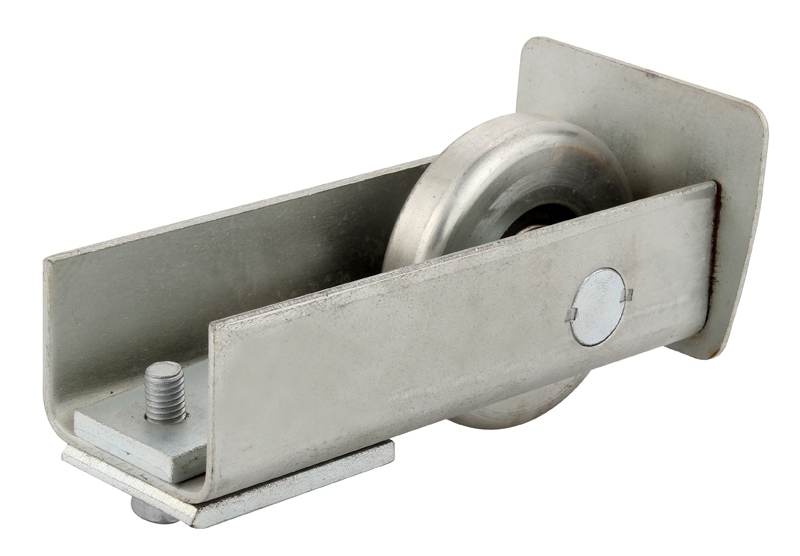

L8S_YZP | Cantilever Guide Wheel Small Size Yellow Zinc Plated | 2-43/64"
| 19/32"
| 2-1/64"
| 2-3/4" * 2-23/64"
| 5-33/64"
| 1/8"
| 2.16 | Yellow Zinc |
L8M_YZP | Cantilever Guide Wheel Medium Size Yellow Zinc Plated | 2-29/32"
| 19/32" | 2-53/64"
| 3-45/64" * 3-11/32"
| 5-33/64"
| 1/8"
| 2.75 | Yellow Zinc |
L8L_YZP | Cantilever Guide Wheel Large Size Yellow Zinc Plated | 3-55/64" | 1-3/16"
| 4-1/16" | 5-15/32" *5-19/32"
| 7-43/64"
| 5/32" | 8.82 | Yellow Zinc |
| Size | Small or Medium or Large |
| Surface Finish | White Zinc or Yellow Zinc |
